The Asus computer doesn't boot and the DRAM_LED red LED lights up

Symptom

The computer doesn't boot and the "DRAM_LED" LED on the motherboard will light up in red.

In some cases, the message "Overclocking failed" may appear on the screen.

Cause

A compatibility problem with RAM sticks used.

Solution for Asus motherboards

A temporary solution (but that doesn't work every time) is to restart the computer when the message "Overclocking failed" is displayed.
Sometimes the computer will be able to restart once properly but the problem will occur again in the next few reboots.

To fix this problem permanently, you have 2 options (to be tested in this sense) :

  1. use the "ASUS MemOK!" button present on your Asus motherboard. (if that is the case)
  2. flash the BIOS of your motherboard using compatible RAM sticks. This update can sometimes solve this compatibility problem. However, the BIOS flash is a risky operation. Ask a computer store to avoid making your motherboard permanently inoperable.

1. Use the "ASUS MemOK!" button

When the "DRAM LED" LED lights in red on the motherboard, locate the button "MemOK" next to this red LED on the motherboard and press it for 3 seconds.

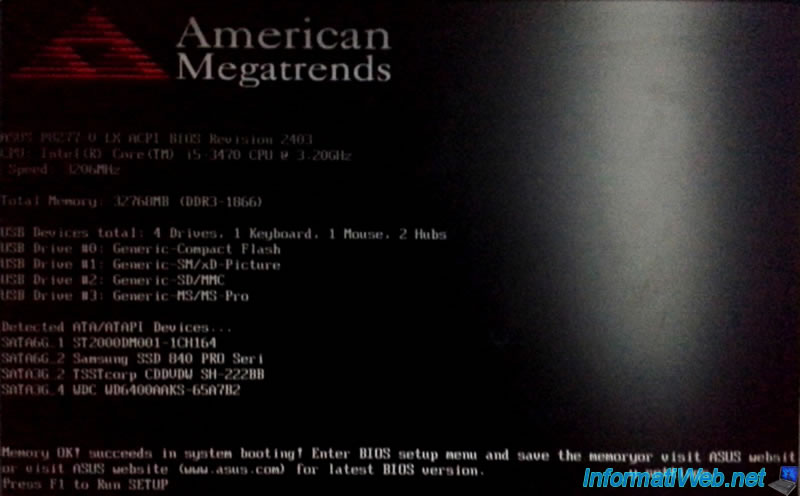

Then, the red LED flashes and the computer will reboot itself. Upon reboot, the message "Memory OK! Succeeds in system booting! ..." Appears.
Apparently, when you press the button MemOK, motherboard trying to adapt the BIOS settings to make your RAM sticks compatible.

To save the modification that was performed automatically, enters into the BIOS by pressing F1 and exit with saving changes (as indicated at the bottom of the screen).

2. Flash the BIOS of your motherboard

If that does not work, you can flash your motherboard with RAM stick compatible.
If you don't have a compatible RAM stick, go to a computer store and ask for a BIOS flash.

To flash the BIOS of your motherboard, please see our tutorial : Flash (update) the BIOS of an Asus motherboard with EZ Flash 2
